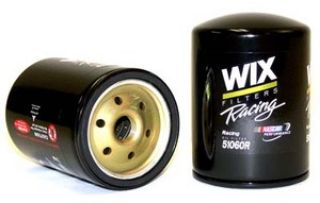

Wix Racing Oil Filter Chevy 51060R

SKU: WIX51060R
$14.99
Wix Racing 51060R
Fits V6, Small Block, and Big Block Chevy/GM engines




Oil Filter Style:Canister

Height (in):5.170 in.

Outside Diameter (in):3.600 in.

Anti-Drainback Valve:Yes

Smallest Particle Filtered:61 microns

Thread Size:13/16-16 in.

Gasket Outside Diameter (in):3.444 in.

Gasket Inside Diameter (in):3.100 in.

Gasket Thickness (in):0.260 in.




Wix Racing High Efficiency Endurance (HEE) Oil Filters use a media rated at a Frazier airflow of approximately 75 CFM. This media contains a higher resin content than Wix Racing Advanced Performance Oil Filters to trap and hold smaller contaminants and provide higher efficiency.

• Heavy-walled can and cover to withstand the extreme burst pressures (up to 500 psi).
• High temperature nitrile baseplate gaskets (up to 300°F) withstand extremely high racing temperatures.
• Zinc chromate-plated baseplate provides low surface friction and is corrosion free.
• Spiral-wound center tube provides increased collapse pressure and enhanced flow pattern.
• Metal end caps provide element strength and prevent filtering bypass.
• Individually sealed to protect against contamination by environmental dust or dirt

Wix Racing 51060R
Fits V6, Small Block, and Big Block Chevy/GM engines




Oil Filter Style:Canister

Height (in):5.170 in.

Outside Diameter (in):3.600 in.

Anti-Drainback Valve:Yes

Smallest Particle Filtered:61 microns

Thread Size:13/16-16 in.

Gasket Outside Diameter (in):3.444 in.

Gasket Inside Diameter (in):3.100 in.

Gasket Thickness (in):0.260 in.




Wix Racing High Efficiency Endurance (HEE) Oil Filters use a media rated at a Frazier airflow of approximately 75 CFM. This media contains a higher resin content than Wix Racing Advanced Performance Oil Filters to trap and hold smaller contaminants and provide higher efficiency.

• Heavy-walled can and cover to withstand the extreme burst pressures (up to 500 psi).
• High temperature nitrile baseplate gaskets (up to 300°F) withstand extremely high racing temperatures.
• Zinc chromate-plated baseplate provides low surface friction and is corrosion free.
• Spiral-wound center tube provides increased collapse pressure and enhanced flow pattern.
• Metal end caps provide element strength and prevent filtering bypass.
• Individually sealed to protect against contamination by environmental dust or dirt
