Tilton 1" Master Cylinder

TILTON 1" MASTER CYLINDER


Aluminum cylinder: anodized for wear and corrosion resistance

Push rod stroke: 1.1" max
Mounting options: flange or side
Outlet ports: dual, AN-3 (3/8"-24)
Reservoir cap: newly improved screw-type with seal & baffle
Fittings: 3/16" inverted flare & AN-3 included
Cylinder weight: .94 lbs (depend on bore size)
Body length: 5.6" (mounting flange-to-outlet port)
Bore size: 1"

Includes:
(1) Master cylinder
Small (4.0 oz) and large (10.7 oz) reservoirs
Remote reservoir mount kit
Fittings

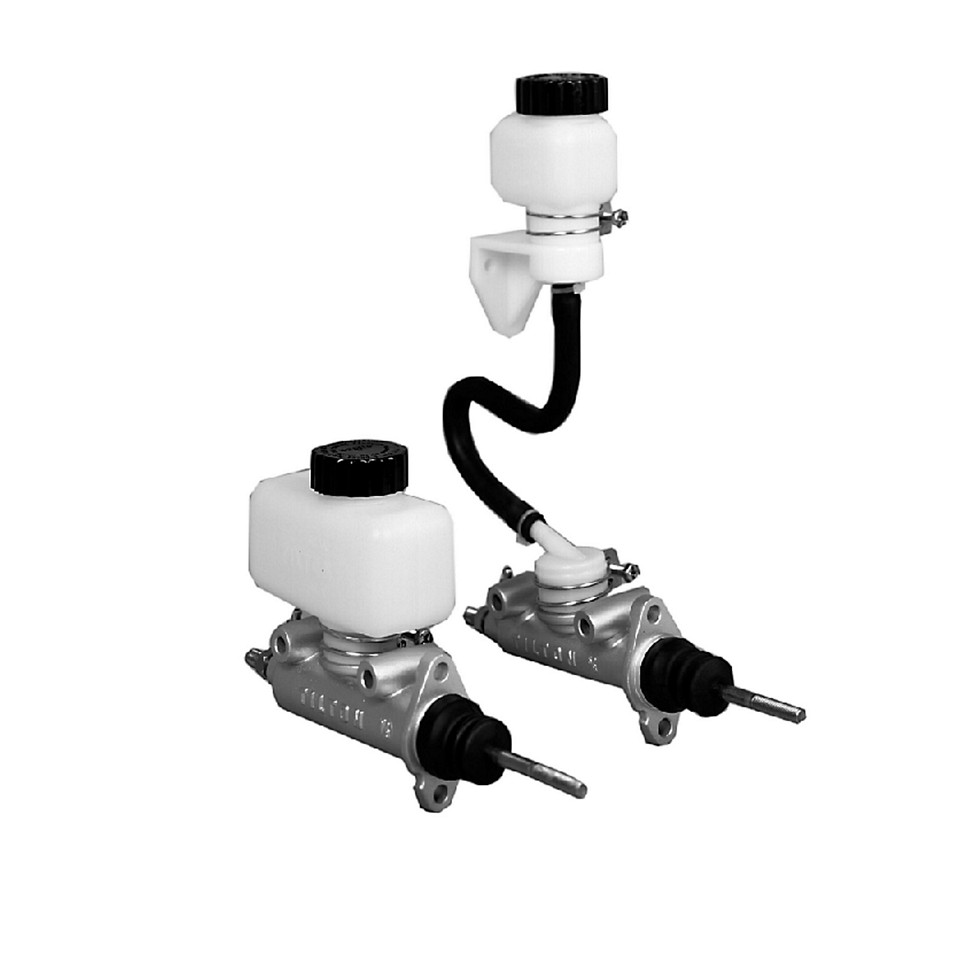

Picture shown demonstrates mounting examples.  Only 1 master cylinder is included.
